SHOCKWAVE THERAPY UNIT
أجهزة ومعدات علاج طبيعي Item Code: Physio-00182
UOM : Pc

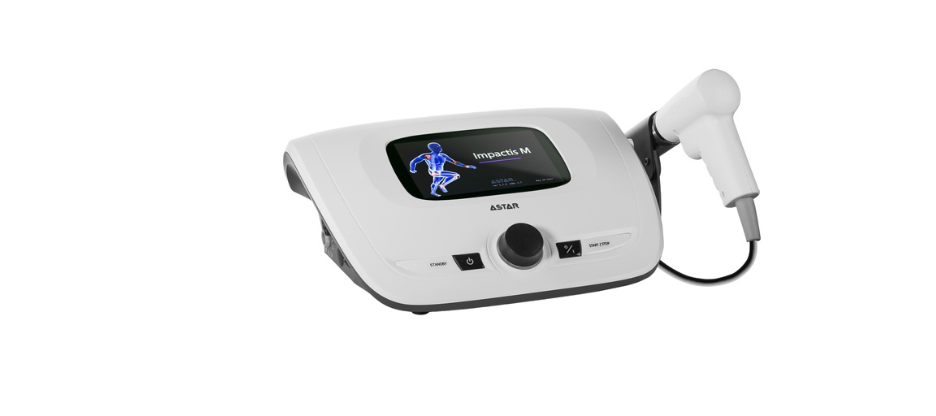

The Impactis M + shockwave therapy device enables effective treatment of chronic pain associated with chronic inflammation and degeneration of tendons, joint capsules, ligaments muscles, and bones. It is also a great support in the therapy of trigger points, i.e. particularly sensitive places characterized by increased tension, which can generate radiating pain.
Shockwave therapy technical parameters:
| Compressor pressure | 1-5 bar |
| max. energy density on the transmitter surface | 0,38 mJ/mm2 |
| Ballistic system life-time | > 2 million shocks |
| Pulse emission frequency (shocks) | 1-25 Hz |
| Number of shocks | 1-10 000 |
| Dimensions | 36,1 x 30,4 x 15,1 cm |
| device weight | 7 kg |
| Power supply | 100-240 V, 50/60 Hz |
| Power consumption | 24VDC 6,25A |
Standard Accessories:
- 10 mm steel transmitter
- 15 mm steel transmitter
- 15 mm titanium transmitter
- 20 mm steel transmitter
- dedicated holder
- gel 500g
- impulse power supply
- LCD screen cloth
- mains cable
- post-control safety inspection report
- screwdriver for holder assembly
- shockwave applicator
- spare elastomer spring
- spare fuses
- spare gaskets 8×3; 12×3; 13×3
- touchscreen pen
- user guide
